Product Description
Functional Description:

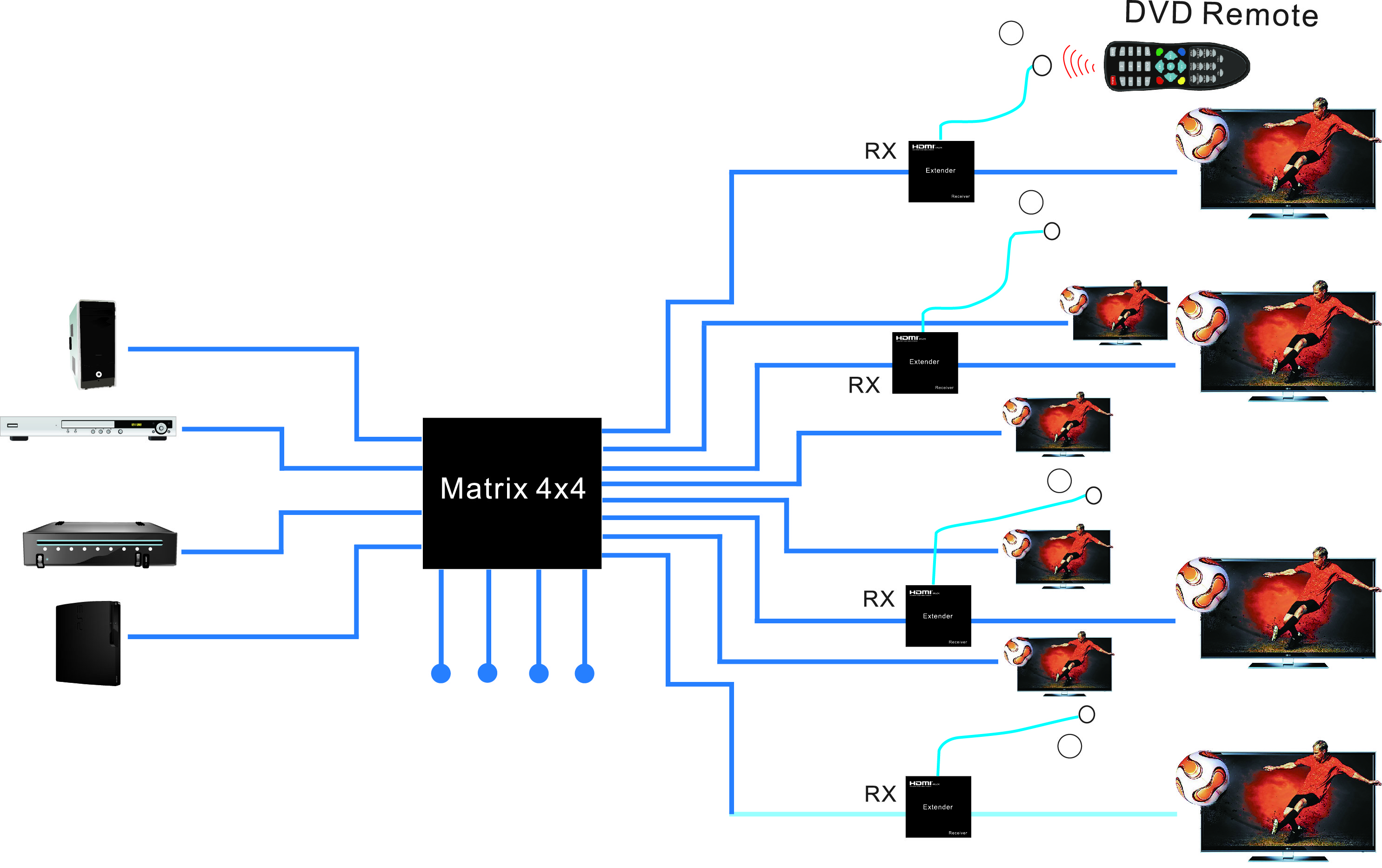

This HDMI matrix is a 4-by-4 DVI/HDMI true matrix. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter the source is HDCP or not. Extra infrared receiver extension, IR emitter, RS232 and Ethernet port are supplied for remote control.
HDMI matrix 4×4 has the ability of equalization and amplification to ensure HDMI signal’s transmission through long cable without quality loss. This HDMI matrix offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Product Standard:
1.Support HDMI 1.4 and HDCP1.4
2.Support 3D
3.Support high definition resolutions 1080p, 1080i, 720p and other standard video formats
4.Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
5.Support signal timing reset
6.Support AWG26 HDMI standard cable, input up to 15 metres,output up to 20 metres
7.Input ports can be controlled by IR Remote Control
8.Via RS-232 control, the machine can upgrade the software, and the input and the output can be switched by computer
9.The four outputs could show the same or different source simultaneously no matter the source is HDCP or not

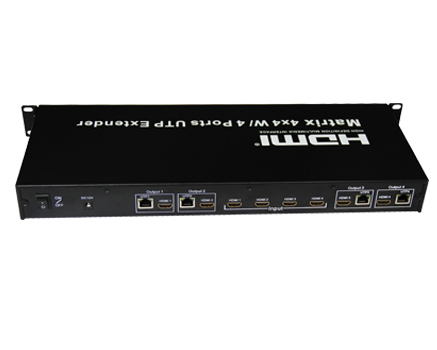

10.The four outputs all include one HDMI-A connector and one RJ-45 connector. They can output simultaneously
