Product Description
Function Description:

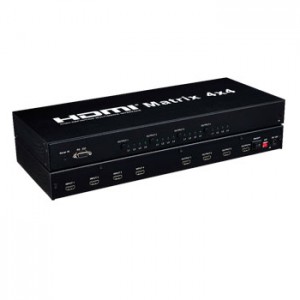

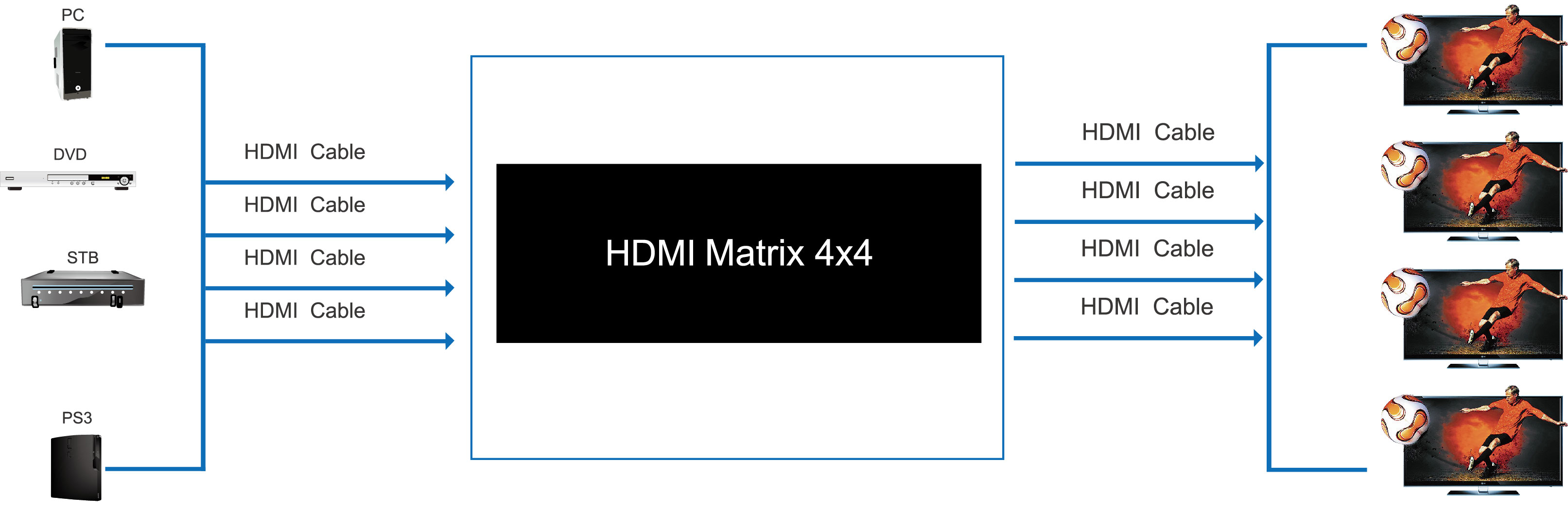

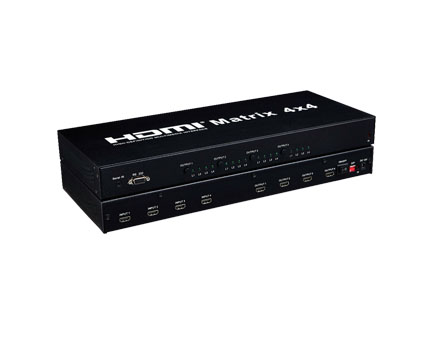

The 4×4 HDMI matrix can connect four HDMI signal sources with the four displays at the same time.It can easily and freely split or switch four hdmi signals on four displays or projectors which compatible with hdmi signal. In addition, when connect its ports with HDMI cable, it can amplify the HDMI signal.
The equipment our company produced provide solution for the following applications: such as the place limited of noise, transmission distance and safety, data center control, information distribution, the presentation in conference room, teaching environment and corporate training places.
Product Standard:
1.Four HDMI signals input to be independently distributed or switched to four displays which support HDMI signal input
2.Support HDMI 1.3 and HDCP1.4
3.Support true color 12 bit
4.Support Blu-Ray DVD24/50/60fs/HD-DVD/xvYCC
5.Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
6.Support signal timing reset
7.Support AWG26 HDMI standard cable, input up to 10 meters,output up to 20 meters
Input ports can be controlled by IR Remote Control
8.Via RS-232 control, you can upgrade the software of the machine, the input and the output can be switched by computer
9.No signal loss
10.12V/3A Power Supply
