Product Description
Functional Description:

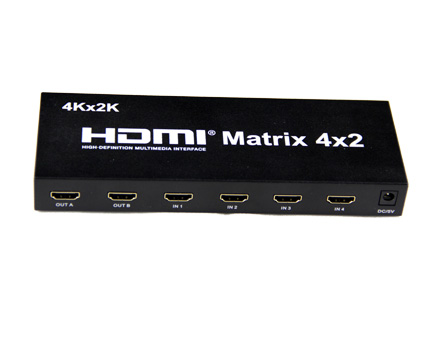

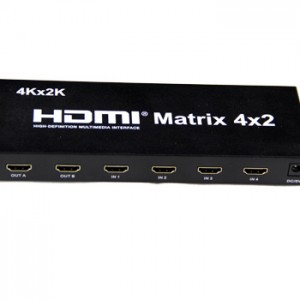

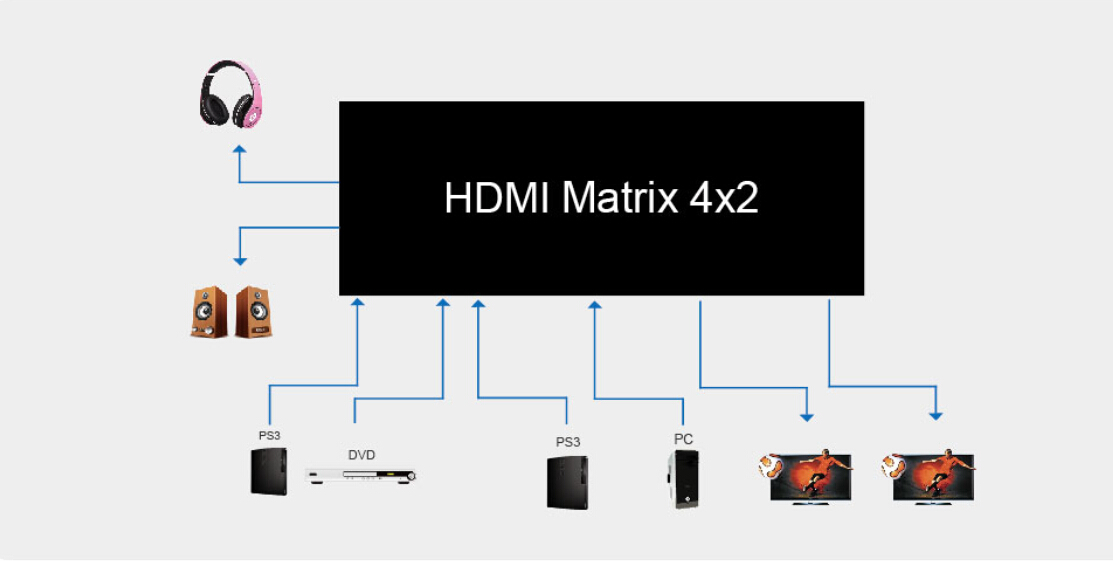

The HDMI matrix 4×2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Product Standard:
1.Support HDMI 1.4a
2.Support 3D video format
3.Support highest resolution up to 1080p/60Hz
4.Support 2.25Gbps data rate and tmds clock up to 225MHz
5.Support deep color 8/10/12 bit
6.Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
7.Support 3.5 mm audio output and optical output
8.Support 5.1 audio channel
9.Support single high definition display and multiple output HD signal sources, such as DVD Players, A/V receivers and Set Top Boxes.
10.Need DC5V/2A power supply
