Product Description
Functional Description:

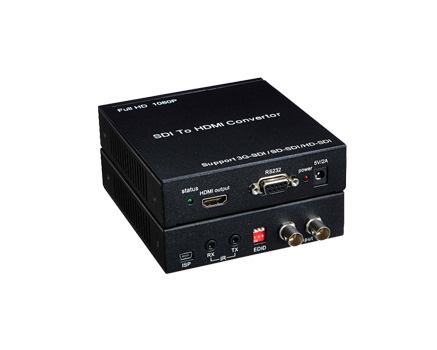

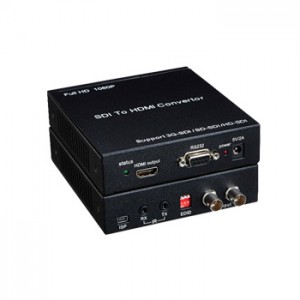

This coaxial(SDI) extender is with a SDI-TX ,which change the HDMI signal into RGB signal ，the RGB signal converts to SDI signal (3G/SD/HD) which sending to SDI-RX via coaxial，the SDI signal converts to RGB signal in the SDI-RX port, and then converter RGB signal to HDMI.
The audio signal brought by SDI will embedded in the HDMI signal after the separation and converting in order to achieve sound and image synchronization transmission, lossless and without delay. This extender Supports distance up to 60 meters by coaxial cable, with superior A/V quality and high reliability, low power consumption.
Product Standard:
1.SDI (BNC female) is compatible with SMPTE 424M, SMPTE 292M and SMPTE 259M
2.HDMI 1.3
3.Resolution: 576I,480I,720P50/60Hz,1080I50/60Hz,1080P50/60Hz
4.EDID learning, DIP for EDID management control, more compatible
5.Support 2.1/5.1/7.1 stereo audio
6.Support video and audio sync transmission
7.Support bidirectional IR control
8.RS232 source, transferred together with the HDMI signal, could control the sources from the sinks or control the sinks from sources.
9.Operating temperature range: (-15 to +45℃)
10.Operating Humidity range: 5 to 90%RH (No Condensation)
11.Power adapter format: DC 5V/2A
12.Dimension (L x W x H): 125mmx115mmx30mm
13.Net Weight: 360gX 2PCS
