Product Description
Functional Description:

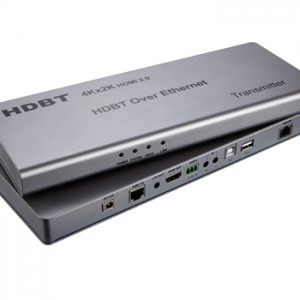

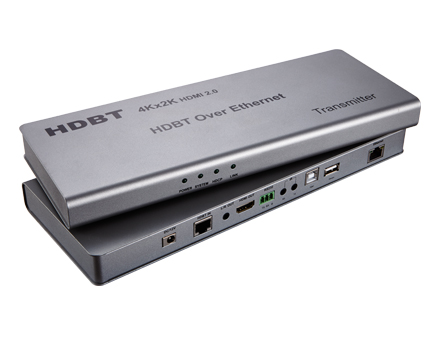

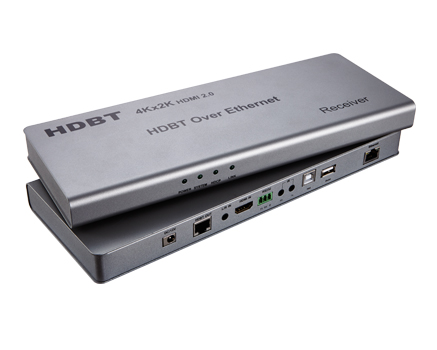

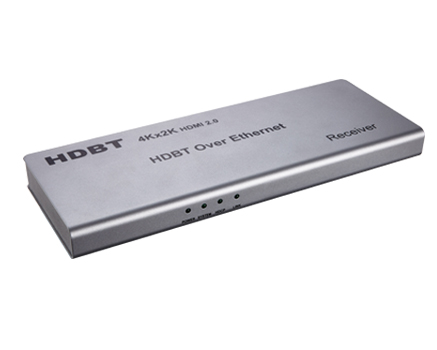

This HDBT/KVM Extender uses CAT6 cable to transmit the signal of blue ray DVD, Player, PC and so on. It supports highest resolution 4Kx2k, the max distance can be 100 meters. It supports bidirectional infrared, RS232, with POE function,KVM function ,support Ethernet , ultrathin design. No loss of quality, install in minutes and stabilize in product, our this HDMI Extender is with high practicability and can be used in major projects, conference rooms and other places.
Product Standard:
Support HDMI V2.0 ,HDCP2.2
Support 3D video format
Support the highest resolution : 3840×2160/30Hz,(1080P/60Hz,1080i,720p…)
Support the sampling frequency of soud: 44.1KHz ,48KHz, 192KHz
Support 36 bit deep color
Support the Max transmit distance over cat6:
1) When input 1080P, the max distance is 100M
2) When input 4Kx2K, the max distance is 70M

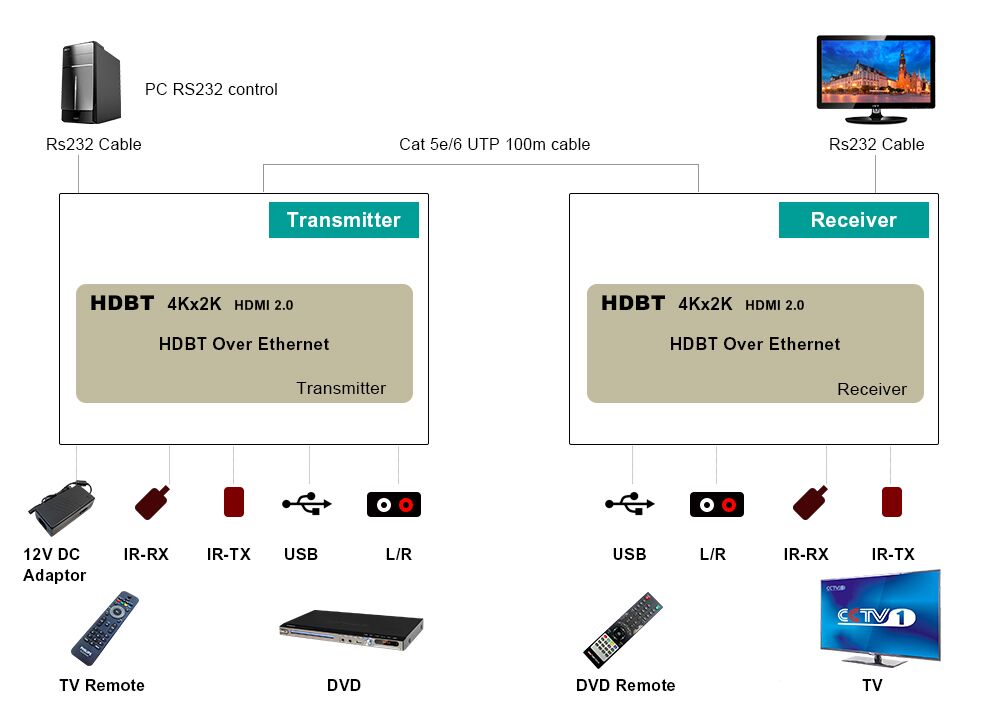

Support bidirectional IR control, control the input resource devices and output displayer in receiving place
Support RS232 serial port
