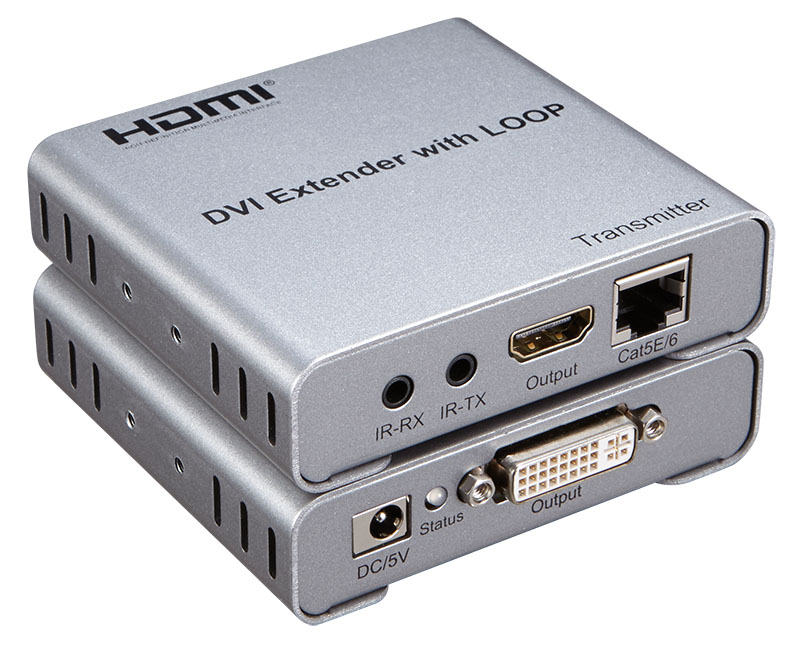

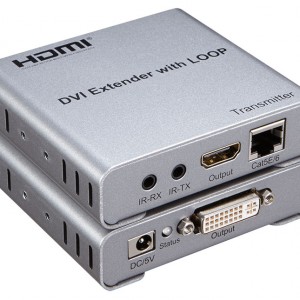

Product Description
Functional Description:
FEATURES
Support HDMI 1.4a
Support 3D
Support highest video resolution 1080p/60Hz
Support Bi-directional IR control
Support 1.49Gbps data rate and tmds clock up to 148.5MHz
Support 8 bit deep color
The transmitter support HDMI loop-out function.
The transmitter support EDID management.
Support AWG26 DVI standard cable, input up to 10 meters, output up to 10 meters

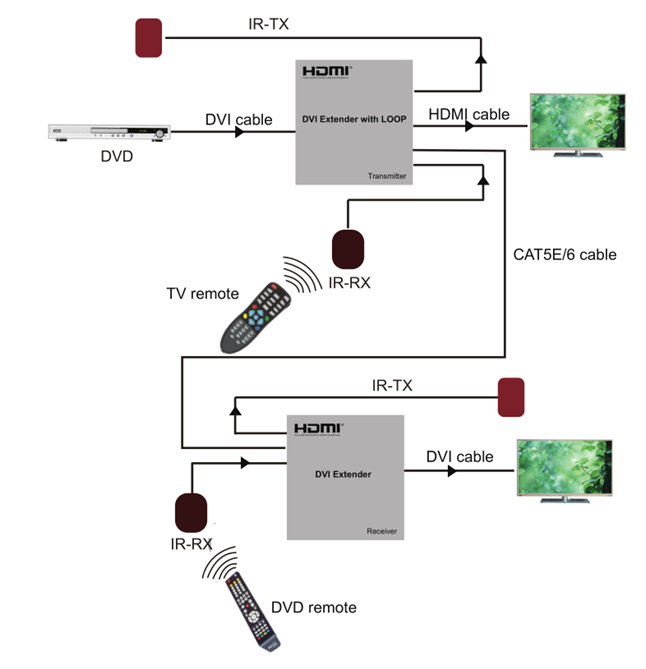

Twisted pair transmission: By using single cat-5e or cat-6(recommended) cable to connect the transmitter and receiver, it can extend the distance up to 50 meters between TX and RX, the quality of the cable will influence the transmission distance.
Need DC5V/1A power supply
Product Standard:
Length of CAT-6/CAT-5E cable between Rx andTX……………………….…..Up to 50 meters
DVIInput…..…………………..……24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Supportaudio format.……………………………………………………………DTS/Dolby/PCM
Supportaudio input..…………………………….…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
DVIOutput…..…………….…..……24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Maxtransmission bandwidth……………………………………….………………………148.5MHz
Maxbaud rate……………….…….………………….…….……………………………1.49Gbps
Inputvideo signal ………….……………………………………………….……0.5~1.5Volts p-p
OutputDDC signal ……………………………………………………………… 5Volts p-p (TTL)
InputDVI cable distance………….………………………..≤10m AWG26 DVI standard cable
OutputDVI cable distance…………………………………….. ≤10m AWG26 DVIstandard cable
TXMax working current…………………………………………………….………………650mA
RXMax working current……………………………………………………………………300mA
Poweradapter format………..………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
OperatingTemperature range……..…………….…………………………… (-15 to +55℃)
OperatingHumidity range………………………….….……5 to 90%RH (No Condensation)
Dimension(L x W x H) ……………………………….…………………………84×87.5×23.5 (mm)
TXWeight…..……………………………………………..……………………………..………210g
RXWeight…………………………………………………………………………………………………………200g
